Starter fastening

1 – bolts of fastening of a starter to картеру couplings,

2 – a wire of power supplies of a starter,

3 – a wire of power supplies of the electromagnetic switch

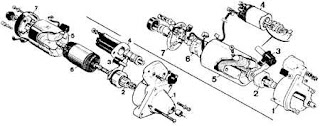

Starters Lucas


1 – a head,
2 – knot of a drive,
3 – the lever of a drive,
4 – the electromagnetic switch,
5 – stator,
6 – a rotor,
7 – a back cover with brush holder


Starters Cajavec and Nippondenso


And – Starters Cajavec
1 – a head,
2 – knot of a drive,
3 – the lever of a drive,
4 – the electromagnetic switch,
5 – stator,
6 – a rotor,
7 – brush holder,



In – Starters Nippondenso
1 – a head,
2 – knot of a drive,
3 – the lever of a drive,
4 – the electromagnetic switch,
5 – stator,
6 – a rotor,
7 – brush holder,

Starters Bosch


1 – a head,
2 – knot of a drive,
3 – the lever of a drive,
4 – the electromagnetic switch,
5 – stator,
6 – a rotor,
7 – brush holder


REMOVAL AND STARTER INSTALLATION

Removal
PERFORMANCE ORDER
1. To disconnect a wire of weight of the accumulator.
2. To lift and fix in front of the car.
3. To disconnect from a starter the main wire of power supplies, and also an electric wire from the electromagnetic switch of a starter.
4. To unscrew three bolts of fastening and to take a starter from below the car.



Installation

For starter installation it is necessary to execute actions in return classic ford parts sequence in relation to removal process.

DISMANTLING AND STARTER ASSEMBLAGE

For dismantling and assemblage of a starter after its removal from the car it is necessary to take advantage of drawings: Starters Lucas, Starters Cajavec and Nippondenso and Starters Bosch on which correct used ford parts positions of each detail are presented.

After starter dismantling it is necessary to check up:

– A condition of brushes, their deterioration, and also freedom of moving of brushes in ford parts on line;
– Force of a clip and position of springs of brushes;
– A kind of a collector which should be cleared a rag moistened in gasoline or, and прошлифовать a fine-grained emery paper;
– A condition of plugs of self-greased bearings; in case ord thunderbird performance parts of need replacements should be lowered new plugs not less, than for 20 minutes in engine oil (viscosity SAE 30 or 40) before their installation in a starter.
